• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Stella (Brand) Various companies

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 362059

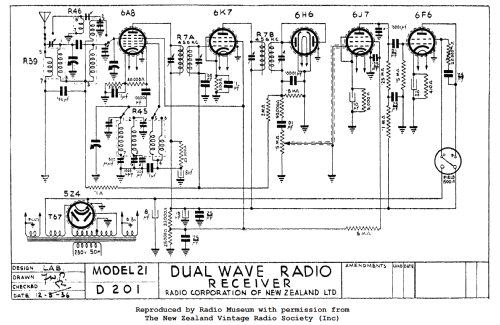

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8 6K7 6H6 6J7 6F6 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21 [Console] - Stella Brand Various companies

• Shape
• Console with any shape - in general

• Notes

• Stella 21 Console

  6-valve dual wave superhet console manufactured by Radio Corporation of New Zealand Ltd for Cory-Wright & Salmon Ltd.

• Mentioned in
• -- Original prospect or advert (Manawatu Standard 23 May 1936 Page 3)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
