• Country
• Great Britain (UK)

• Manufacturer / Brand
• Stella Radio & Television Company Ltd.; London

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127961

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 OC71 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s); something special ? Please give information (notes)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

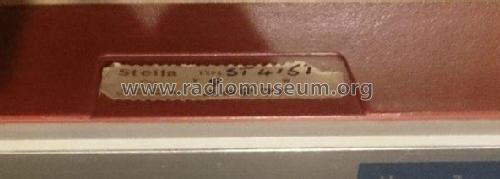

• Model: ST415T - Stella Radio & Television

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 9.5 x 5.75 x 2.5 inch / 241 x 146 x 64 mm

• Notes
• Battery PP7. Car aerial socket fitted. Only 1 IF amplifier, but active demodulator OC71.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Paul Stenning CD Vol 3

• Literature/Schematics (2)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
