Sterling No.1

Sterling No.1; Sterling Telephone & (ID = 2231112) Crystal Sterling No.1; Sterling Telephone & (ID = 2231108) Crystal
Sterling No.1; Sterling Telephone & (ID = 2231107) Crystal Sterling No.1; Sterling Telephone & (ID = 2231106) Crystal
Sterling No.1; Sterling Telephone & (ID = 2231110) Crystal Sterling No.1; Sterling Telephone & (ID = 2231111) Crystal
Sterling No.1; Sterling Telephone & (ID = 2231109) Crystal Sterling No.1; Sterling Telephone & (ID = 1373152) Crystal
Sterling No.1; Sterling Telephone & (ID = 1373153) Crystal Sterling No.1; Sterling Telephone & (ID = 1373154) Crystal
Use red slider bar for more.
Sterling No.1; Sterling Telephone & (ID = 2231112) Crystal
Sterling Telephone &: Sterling No.1 [Crystal] ID = 2231112 1333x2100
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sterling No.1, Sterling Telephone & El. Co. Ltd.:
Sterling No.1 Crystal set top front view

Country:  Great Britain (UK)
Manufacturer / Brand:  Sterling Telephone & El. Co. Ltd.
Year: 1922 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Sterling No.1 - Sterling Telephone & El. Co.

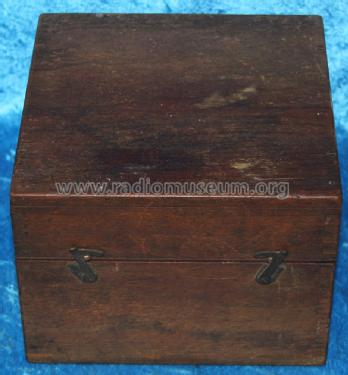

Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 8.75 x 6 x 8.75 inch / 222 x 152 x 222 mm
Notes loading coil for LW. BBC/PMG stamp, GPO No.130;
Source of data Tickling the Crystal; Sanders

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
