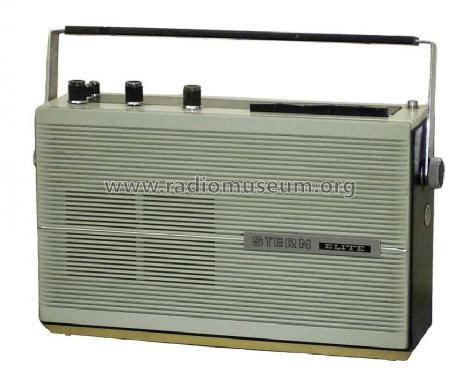

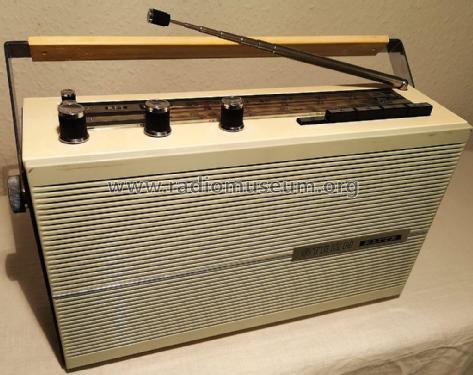

Stern-Radio Berlin,: Stern Elite R150 [Radio] ID = 75710 872x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Elite R150 alt, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: GF132 GF131 GF130 GF130 GF130 GC101 GC116 GC301 GC301
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 9V / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Stern Elite R150 [alt] - Stern-Radio Berlin, VEB, RFT,
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 150 x 190 mm / 12.6 x 5.9 x 7.5 inch
Notes Holzgehäuse mit Plastikfront. Anschluss für sep. Netzteil, Außenlautsprecher, Autoantenne, TA/TB. Ferritantenne für LW/MW, Teleskopantenne für KW/UKW. Erstmals ist der Tastensatz in gedruckter Schaltung ausgeführt, ZF-Verstärker vom R110 mit Änderung des Ratiodetektors, jetzt symmetrisch ausgeführt wegen AFC, NF- Endstufe ebenfalls vom R110 übernommen.
Ab 1968 verbesserte Version Stern Elite mit ZF-Verstärker "2b" und Standard-Tuner aus Antennenwerke Blankenburg.
Varianten mit gleichem Chassis sind "Stern Elite Super" (andere Front, Kunstlederbezug) und "Stern Elite de Luxe" (Edelholzfurnier).
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Collectors' prices
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkverlag Hein, Service DVD
Literature/Schematics (1) radio fernsehen elektronik 1969; H.5 und 7; 1968; H.6
Literature/Schematics (2) Service-Information Stern-Radio Berlin Nr.98/1967

Model page created by Michael Seiffert. See "Data change" for further contributors.
