Stern Elite Super R150

Stern Elite Super R150; Stern-Radio Berlin, (ID = 819716) Radio

Stern Elite Super R150; Stern-Radio Berlin, (ID = 819717) Radio

Stern Elite Super R150; Stern-Radio Berlin, (ID = 819719) Radio
Stern Elite Super R150; Stern-Radio Berlin, (ID = 442558) Radio Stern Elite Super R150; Stern-Radio Berlin, (ID = 442559) Radio
Stern Elite Super R150; Stern-Radio Berlin, (ID = 1303089) Radio Stern Elite Super R150; Stern-Radio Berlin, (ID = 1303090) Radio
Use red slider bar for more.
Stern Elite Super R150; Stern-Radio Berlin, (ID = 442558) Radio
Stern-Radio Berlin,: Stern Elite Super R150 [Radio] ID = 442558 795x599

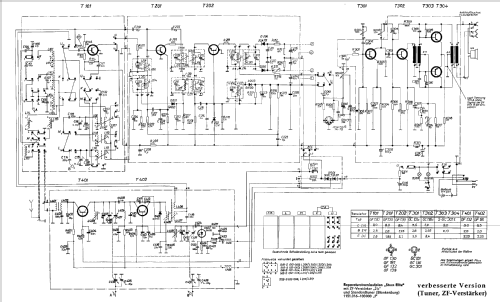

Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Elite Super R150, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Stern Elite Super R150 - Stern-Radio Berlin, VEB, RFT,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 197 x 97 mm / 12.6 x 7.8 x 3.8 inch
Notes

AM/ FM- Reisesuper im kunstlederbezogenen Holzgehäuse. Anschlüsse für Tonband, Lautsprecher und für ein externes Netzteil.
Gehäusevariante des Stern Elite.

Lautsprecher-Typ: LP 553, 1,5W, 4 Ohm. Maße: 155 mm X 105 mm.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 635.00 DM
Collectors' prices
Source of data - - Manufacturers Literature
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein
Literature/Schematics (2) Service-Information Stern-Radio Berlin Nr.98/1967

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
