HiFi Tuner HMK-T100

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100046

• • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 3 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi Tuner HMK-T100 - Stern-Radio Berlin, VEB, RFT,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 60 x 270 mm / 15.4 x 2.4 x 10.6 inch

• Notes

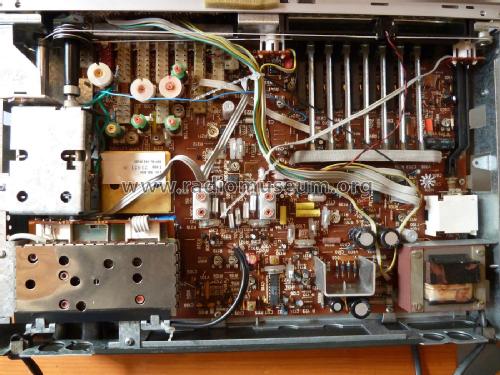

• HMK-T100 von Stern-Radio Berlin

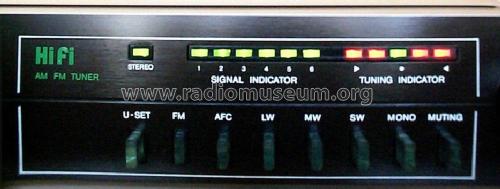

  ist ein HiFi-Tuner mit: 7-Senderspeicher, PLL-Stereodekoder, MPX-Filter, Muting, Exakt-Tuning mittels LED-Anzeige, Feldstärkeanzeige.
  Je ein Keramikfilter für AM und für FM, 10 ICs, 47 Dioden und 20 LEDs.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Price in first year of sale
• 1,350.00 Mark

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Service- DVD vom Funkverlag B. Hein

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
