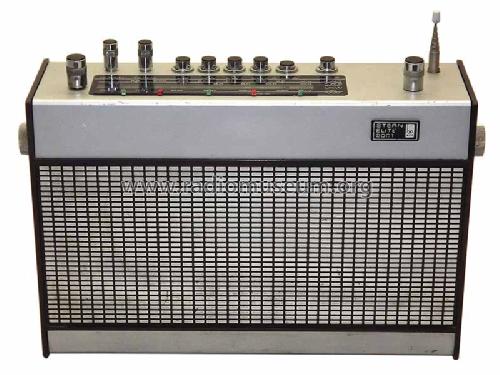

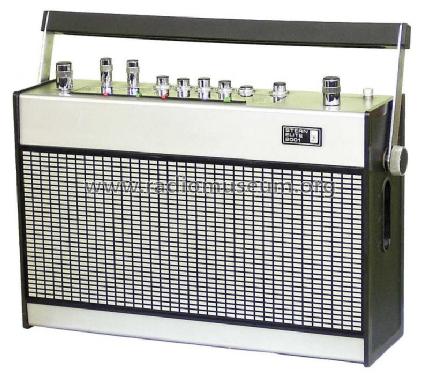

Stern-Radio Berlin,: Stern Elite 2001 R155-01 [Radio] ID = 75420 797x700

Select picture or schematic to display from thumbnails on the right and click for download.

For model Stern Elite 2001 R155-01, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:

Germany

Manufacturer / Brand:

Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

Year: 1975–1977 ?

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

10: ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 SC207 SC206 МП20 AC187 AC188

Main principle	to an article Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits	6 AM circuit(s) 10 FM circuit(s)
Wave bands	Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage	Line / Batteries (any type) / 220 / 6x1,5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out	1 W (unknown quality)
from Radiomuseum.org	Model: Stern Elite 2001 R155-01 - Stern-Radio Berlin, VEB, RFT,
Material	Various materials
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	326 x 218 x 99 mm / 12.8 x 8.6 x 3.9 inch
Notes	Koffersuper der gehobenen Klasse im Vollplastikgehäuse mit getrennter Höhen- und Tiefenreglung. Skala mit Skalenreitern, eingebautes Netzteil, Anschlüsse für TA/TB, Außenantenne und Zusatzlautsprecher. Ferritantenne, für UKW Teleskopantenne. UKW-Bereich 87,5-100,0 MHz. Gehäuse aus Polystyrol mit 4-mm-Spanplatten-Verstärkung. Elektrisch nahezu baugleich zu Elite 2000. Die Angaben der Halbleiterbestückung in der Service-DVD sind fehlerhaft, siehe Stromlaufplan. Wurde 1977 im Intershop der DDR verkauft für 27 DM. Siehe auch das Exportmodell "Comix". Gehäue besteht aus Sperrholz mit Kunststoffbeplankung. Wie alle Gehäuse der Stern-Elite-Serie hergestellt im VEB Möbelwerke Eisenberg (Werk 6).
Net weight (2.2 lb = 1 kg)	3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale	660.00 DM
Collectors' prices
Source of data	Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1)	Service-DVD Funkverlag B. Hein (radio fernsehen elektronik 1975, H.12, S. 399ff.; H.13, S.433)
