Stern Format T 130 1151.318-i

Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 71669) Radio
Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 71670) Radio Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 71671) Radio
Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 422984) Radio Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 629691) Radio
Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 1065477) Radio Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 1065479) Radio
Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 1065480) Radio Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 1391555) Radio
Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 1799058) Radio Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 1799060) Radio
Use red slider bar for more.

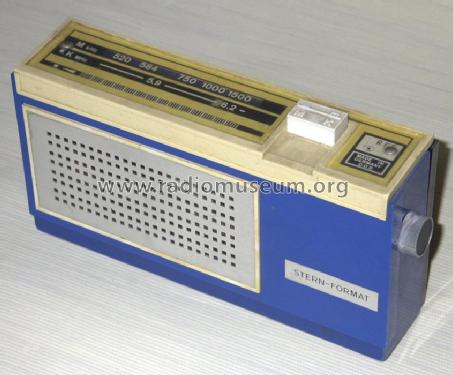

Stern Format T 130 1151.318-i; Stern-Radio Berlin, (ID = 71670) Radio
Stern-Radio Berlin,: Stern Format T 130 1151.318-i [Radio] ID = 71670 846x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Format T 130 1151.318-i, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: GF122 GF126 GC117 SC206 GC116 GC116 GC507 101NU71
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.14 W (unknown quality)
from Radiomuseum.org Model: Stern Format T 130 1151.318-i - Stern-Radio Berlin, VEB, RFT,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 95 x 40 mm / 6.9 x 3.7 x 1.6 inch
Notes

Baugleich mit Stern Junior und Stern Sport, nur anderes Gehäuse, verschieden Farben.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 190.00 DM
Collectors' prices
Source of data Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
