Stern Sport T130; Stern-Radio Berlin, (ID = 240732) Radio
Stern-Radio Berlin,: Stern Sport T130 [Radio] ID = 240732 872x532

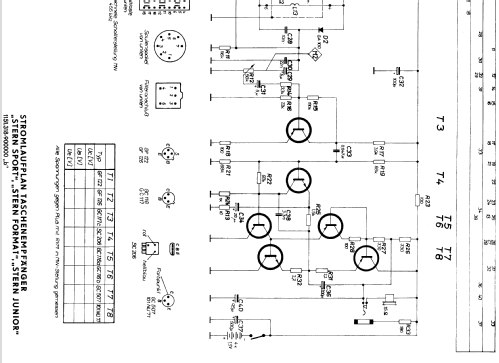

Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Sport T130, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: GF122 GF126 GC117 SC206 GC116 GC116 GC507 101NU71
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 0.14 W (unknown quality)
from Radiomuseum.org Model: Stern Sport T130 - Stern-Radio Berlin, VEB, RFT,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 166 x 87 x 39 mm / 6.5 x 3.4 x 1.5 inch
Notes

Ferritantenne, Ohrhöreranschluss, Kurzwelle nur 49-m-Band. Weitere Gehäusevarianten: Stern Junior und Stern Format, beide sind elektrisch baugleich.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Price in first year of sale 185.00 DM
Collectors' prices
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Michael Seiffert. See "Data change" for further contributors.
