Concerton V14

Concerton V14; Stern & Stern (ID = 385280) Radio Concerton V14; Stern & Stern (ID = 385282) Radio
Concerton V14; Stern & Stern (ID = 385284) Radio Concerton V14; Stern & Stern (ID = 2026298) Radio
Concerton V14; Stern & Stern (ID = 2026296) Radio Concerton V14; Stern & Stern (ID = 2026297) Radio
Concerton V14; Stern & Stern (ID = 2026294) Radio Concerton V14; Stern & Stern (ID = 2026295) Radio
Concerton V14; Stern & Stern (ID = 948927) Radio Concerton V14; Stern & Stern (ID = 948928) Radio
Use red slider bar for more.
Concerton V14; Stern & Stern (ID = 385280) Radio
Stern & Stern: Concerton V14 [Radio] ID = 385280 589x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concerton V14, Stern & Stern (Concerton / Conserton), S&S; Stockholm

Country:  Sweden
Manufacturer / Brand:  Stern & Stern (Concerton / Conserton), S&S; Stockholm
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL3 PV495
schematic requested
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt

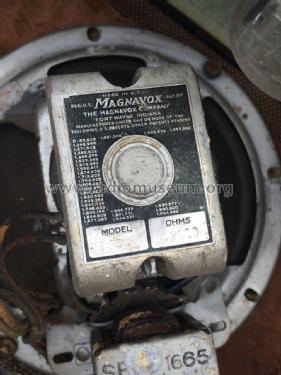

Loudspeaker Presumably Dynamic Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Concerton V14 - Stern & Stern Concerton /
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 315 x 365 x 185 mm / 12.4 x 14.4 x 7.3 inch
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 168.00 SEK
Collectors' prices

Model page created by Lars-G. Lundelin. See "Data change" for further contributors.
