Stern 7E86 ECC81

Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG

Data
Forum
Pictures
Collections

  • Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 126359

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stern 7E86 [ECC81] - Stern-Radio Rochlitz, VEB, RFT
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 570 x 415 x 277 mm / 22.4 x 16.3 x 10.9 inch
  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Price in first year of sale
  • 525.00 DM
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Jens Dehne. See "Data change" for further contributors.

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Stern-Radio Rochlitz: Stern 7E86

Threads: 1 | Posts: 3

Hello,

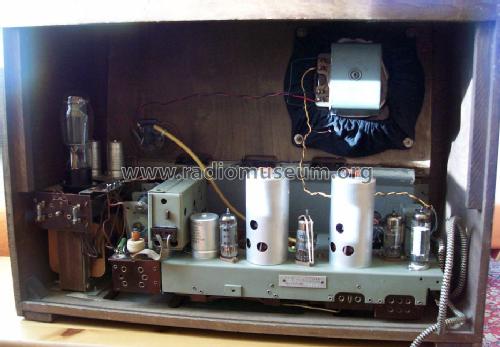

I recently bought this model, and during usual cleaning it turned out, that somebody was probably trying to re-tune UKW to 65-73MHz. The result is visible in the attachement. Of course, I want to restore it to oryginal 87-100MHz. I'd be grateful if somebody could post a picture how the coils should be wound? Traces of original winding are visible in HF part, but I'm not sure, how it should look like in the oscillator part.

I'm also not sure, if coils antenna->cathode are original, as there's definitely some bad soldering there.

Regards,

Piotr

Attachments

Piotr Jachymczyk, 03.Dec.10

Weitere Posts (3) zu diesem Thema.
