Apart 6370

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 117126

• Picture

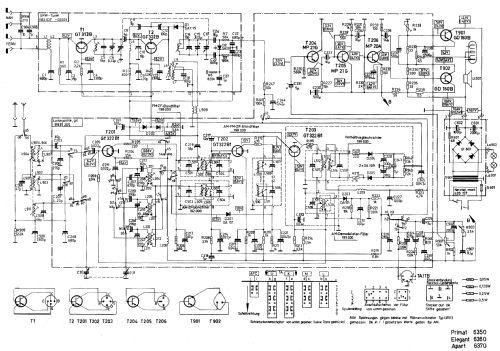

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Apart 6370 - Stern-Radio Sonneberg, VEB,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 170 x 145 mm / 19.7 x 6.7 x 5.7 inch

• Notes
• Basiert auf "Transmiranda", verschiedene Gahäusevarianten und Frontblenden, auch Modellnamen Primat und Elegant mit gleichem Chassis, stets 4-stellige Modellnummer mit 6... - In "de luxe"-Ausführung mit 2 Lautsprechern. Auch im Export durch "Bruns" vertrieben.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 445.00 DM

• Mentioned in
• -- Original prospect or advert (Geschichte der Rundfunkindustrie der DDR (B.2))

• Literature/Schematics (1)
• Funkverlag Hein, Service-DVD

• Literature/Schematics (2)
• Radio und Fernsehen (DDR) (1972, Heft 5)

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.

• Other Models

• Here you find 385 models, 311 with images and 285 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
