B3010 HiFi
Use red slider bar for more.

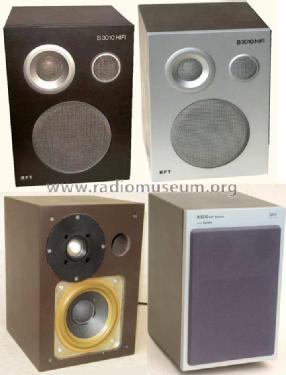

Stern-Radio: B3010 HiFi [Speaker-P] ID = 1159912 580x681
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1982 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | 2 Loudspeakers |
| Power out | 20 W (unknown quality) |
| from Radiomuseum.org | Model: B3010 HiFi - Stern-Radio Sonneberg, VEB, |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 180 x 253 x 197 mm / 7.1 x 10 x 7.8 inch |
| Notes | 2-Wege-Bassreflexbox 20 VA , 4 Ω. Übertragungsbereich 50...18.000 Hz, 5 l Volumen, Weichen-Trennfrequenz 2,3 kHz. Lackierungen silbern oder braun, Abdeckung Stoff oder Drahtgeflecht. Gehäuse aus Faserplatte. Speziell für die Modelle des Gerätesystems S-3000 (SV3000, ST3000, SK3000) entwickelt und ist die kleinste Box im DDR-Angebot, die die HiFi-Norm erfüllt. |
| Net weight (2.2 lb = 1 kg) | 4.6 kg / 10 lb 2.1 oz (10.132 lb) |
| Price in first year of sale | 200.00 DM |
| Collectors' prices | |
| Source of data | -- Collector info (Sammler) |
| Mentioned in | -- Original-techn. papers. |
Model page created by Wolfgang Lill. See "Data change" for further contributors.
