Binz 498; Stern-Radio (ID = 2374064) Radio
Stern-Radio: Binz 498 [Radio] ID = 2374064 1275x825
Select picture or schematic to display from thumbnails on the right and click for download.
For model Binz 498, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner

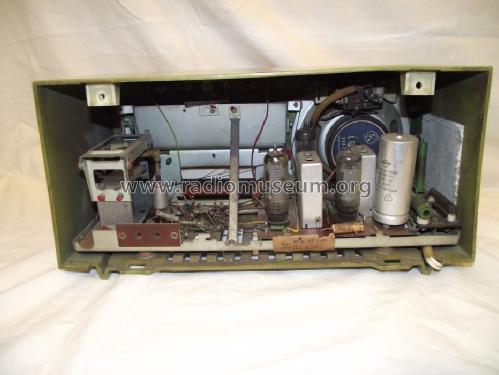

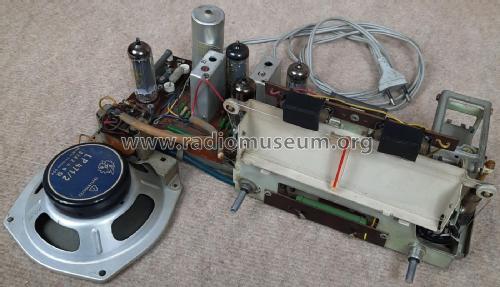

Valves / Tubes 4: UCH81 UBF89 UCL82 UY82
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)

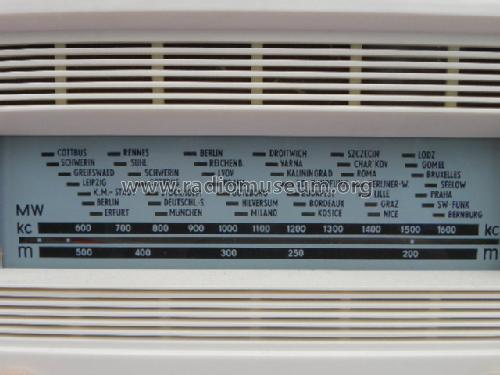

Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Binz 498 - Stern-Radio Sonneberg, VEB,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 350 x 166 x 150 mm / 13.8 x 6.5 x 5.9 inch
Notes Binz 498, ein Kleinsuper nur für Mittelwelle im modernen Kunststoffgehäuse.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 150.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein
Documents about this model

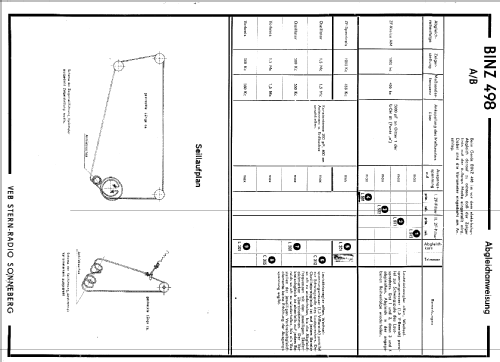

  Serviceanleitung 3386 KB


All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 378 models, 299 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Stern-Radio: Binz 498
Threads: 1 | Posts: 2
Hits: 1553     Replies: 1
stern-sonn: 498; Binz
Egon Strampe
26.Mar.11
  1

Starkes Prasseln. Das Prasseln ist weg, wenn die Anodenspannung der UC(H) 81 unterbrochen wird.

rfe 22/69 S.719

Egon Strampe
26.Mar.11
  2

Ursache vergessen. Es ist der C-310.
