• Year
  • 1971/1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 128331

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

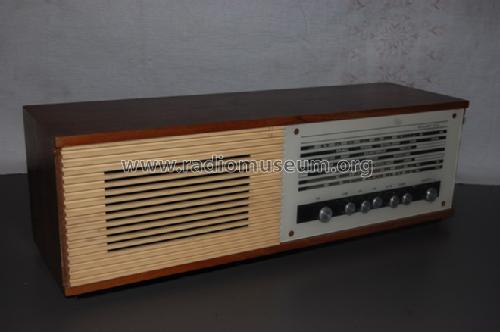

  • Model: Brillant 6310 - Stern-Radio Sonneberg, VEB,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 460 x 140 x 150 mm / 18.1 x 5.5 x 5.9 inch
  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Price in first year of sale
  • 360.00 DM
  • Literature/Schematics (1)
  • Service- DVD vom Funkverlag B. Hein
  • Literature/Schematics (2)

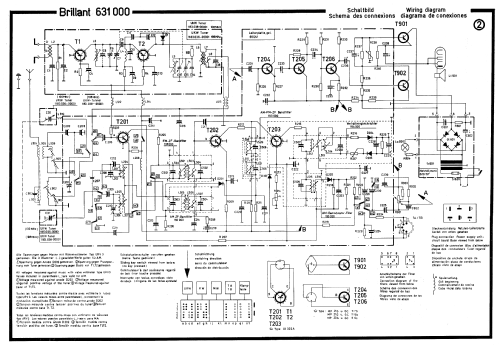

  • -- Schematic
  • Author
  • Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
