Stern-Radio: Compact SC1100 [Radio] ID = 728220 900x675

Select picture or schematic to display from thumbnails on the right and click for download.

For model Compact SC1100, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:

Germany

Manufacturer / Brand:

Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Year: 1979

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

34:

Main principle	to an article Super-Heterodyne (Super in general)
Tuned circuits	7 AM circuit(s) 11 FM circuit(s)
Wave bands	Broadcast, Long Wave, Short Wave plus FM or UHF.
Details	Other Combination - see Notes
Power type and voltage	Alternating Current supply (AC) / 220 Volt
Loudspeaker	- This model requires external speaker(s).
Power out
from Radiomuseum.org	Model: Compact SC1100 - Stern-Radio Sonneberg, VEB,
Material	Various materials
Shape	Tablemodel with Push Buttons.
Dimensions (WHD)	630 x 220 x 390 mm / 24.8 x 8.7 x 15.4 inch

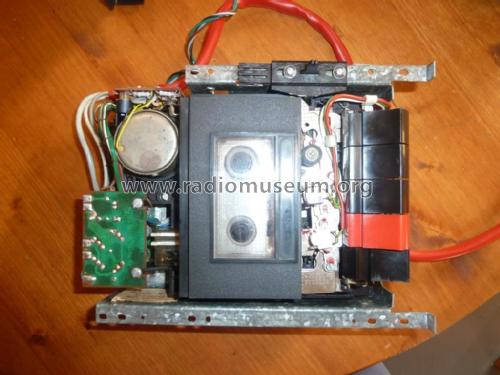

Notes	hergestellt in 2 Varianten mit 2x6 W oder 2x10 W Ausgangsleistung und Pseudoquadroausgang; für Export auch mit UKW-Teil bis 108 Mhz; Phonoteil Türkis mit drei Geschwindigkeiten und keramischen Abtastsystem CS24 SD; ungarisches Import-Kassettenteil.
Net weight (2.2 lb = 1 kg)	14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale	3'080.00 DM
Source of data	-- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

Model page created by Bernd Pötzsch. See "Data change" for further contributors.

All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 379 models, 300 with images and 277 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Peter Faulstich (D)

Collection of Ingolf Pabst (D)

Collection of Wolfgang Lill (D)

Collection of Jörg Kulbe (D)

Forum contributions about this model

Stern-Radio: Compact SC1100

Threads: 1 | Posts: 1

Hits: 1669 Replies: 0 stern-sonn: SC1100 ; Compact
Egon Strampe 17.Aug.11	1 stern-sonn: SC1100 ; Compact Zu kurze Einregelzeit der Aussteuerautomatik. R1524 von 120 Ohm auf 3,3 k vergrößern.
