Elegant 6390

Elegant 6390; Stern-Radio (ID = 1699398) Radio

Elegant 6390; Stern-Radio (ID = 1974817) Radio

Elegant 6390; Stern-Radio (ID = 1974818) Radio

Elegant 6390; Stern-Radio (ID = 1974819) Radio

Elegant 6390; Stern-Radio (ID = 1974820) Radio

Elegant 6390; Stern-Radio (ID = 1974821) Radio

Elegant 6390; Stern-Radio (ID = 1974822) Radio

Elegant 6390; Stern-Radio (ID = 1974823) Radio

Elegant 6390; Stern-Radio (ID = 1974824) Radio

Elegant 6390; Stern-Radio (ID = 1974825) Radio
Elegant 6390; Stern-Radio (ID = 1699368) Radio Elegant 6390; Stern-Radio (ID = 1718821) Radio
Use red slider bar for more.

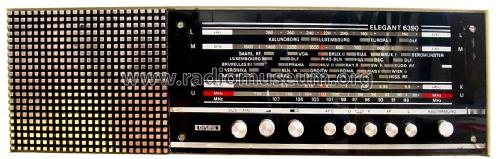

Elegant 6390; Stern-Radio (ID = 1699368) Radio
Stern-Radio: Elegant 6390 [Radio] ID = 1699368 933x405
Select picture or schematic to display from thumbnails on the right and click for download.
For model Elegant 6390, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:
Bild aus RFT-Serviceheft.

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1972 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 1.6 W (undistorted)
from Radiomuseum.org Model: Elegant 6390 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 167 x 145 mm / 19.7 x 6.6 x 5.7 inch
Notes

Exportmodell des Elegant 6360 mit UKW bis 108 MHz, sonst identisch. Über "Bruns" vertrieben und von Fa. Peter, Plauen in Musikmöbel eingebaut.

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Collectors' prices
Mentioned in - - Manufacturers Literature (Service-Anleitung RFT)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
