Junior Phono 701 2407/91

Junior Phono 701 2407/91; Stern-Radio (ID = 811316) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811318) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811319) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811320) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811322) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811324) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811325) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811328) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811329) Radio

Junior Phono 701 2407/91; Stern-Radio (ID = 811330) Radio
Use red slider bar for more.
Junior Phono 701 2407/91; Stern-Radio (ID = 811316) Radio

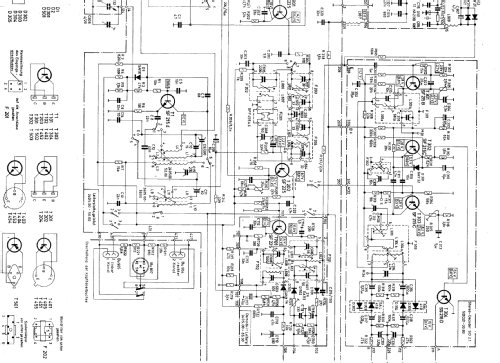

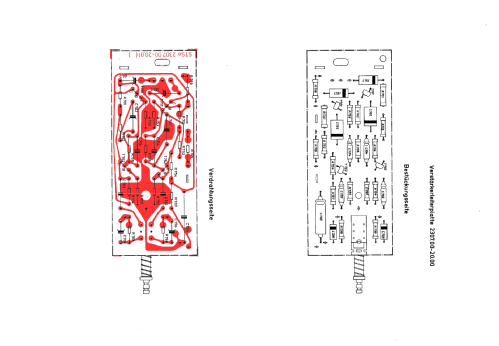

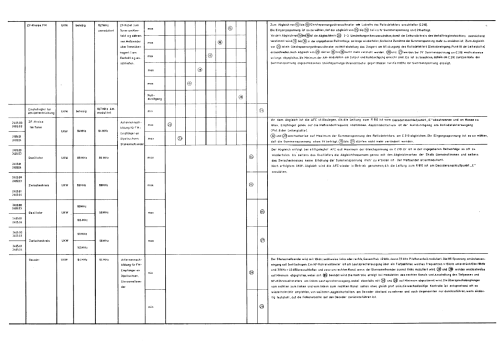

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 24:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Junior Phono 701 2407/91 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 590 x 135 x 315 mm / 23.2 x 5.3 x 12.4 inch
Notes Der Empfänger Junior Phono 701 ist eine Exportausführung und hat einen UKW- Bereich von 88 bis 108 MHz. Als Plattenspieler ist das Laufwerk Türkis 024 eingebaut. Die Ausgangsleistung beträgt 2x 3 Watt Sinus. Zum Lieferumfang gehörten 2 Boxen.
Source of data -- Original-techn. papers.
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
