Miranda 5850
Use red slider bar for more.
Stern-Radio: Miranda 5850 [Radio] ID = 56117 617x255

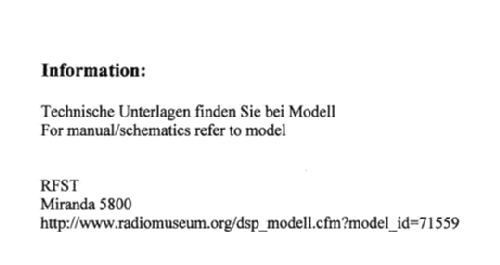

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1967 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECC85 ECH81 EAF801 ECL86 EM84 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 10 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 3 W (unknown quality) |
| from Radiomuseum.org | Model: Miranda 5850 - Stern-Radio Sonneberg, VEB, |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 530 x 162 x 152 mm / 20.9 x 6.4 x 6 inch |
| Notes | UKW-Bereich: 88-108 MHz. Gerät baugleich 5820 nur andere Frontplatte. |
| Net weight (2.2 lb = 1 kg) | 5.5 kg / 12 lb 1.8 oz (12.115 lb) |
| External source of data | Serviceheft Sternradio Sonneberg |
| Source of data | Radiokatalog Band 2, Ernst Erb |
Model page created by Michael Seiffert. See "Data change" for further contributors.
