For model Prominent 201, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:
Prominent 201

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1972 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 SC207 SC206 AC187 AC188
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: Prominent 201 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 165 x 145 mm / 19.7 x 6.5 x 5.7 inch
Notes Der Schaltplan ist für die Modellreihe Prominent 200, 201, 202 und 203 gültig. Verschiedene Gehäuseausführungen. Gehäuse Holz mit Kreuzgitterfront, edelholzfurniert, poliert oder mattiert
Price in first year of sale 445.00 DM

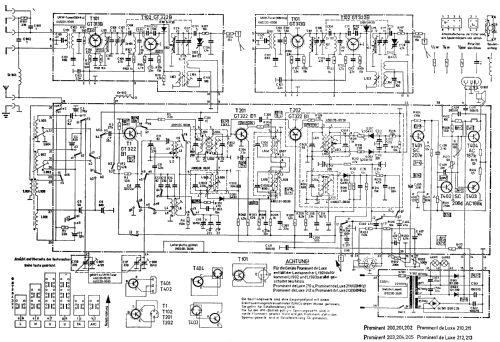

Literature/Schematics (1) -- Schematic

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
