For model Prominent 203 CCIR, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:

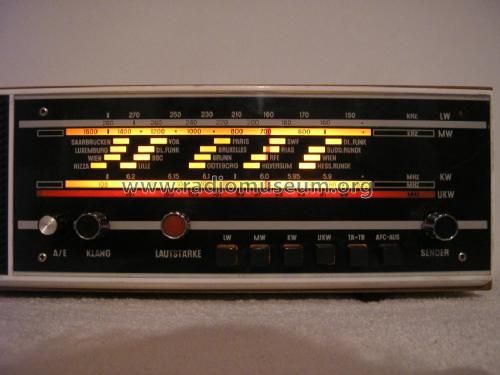

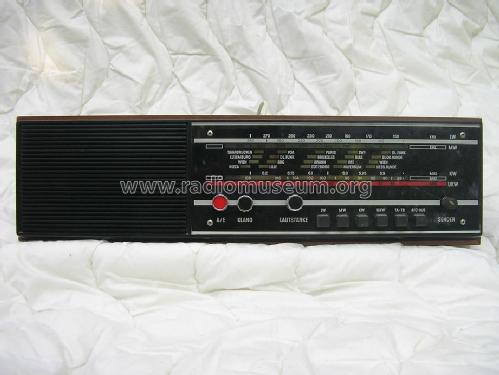

Klang knob missin, Sender knob not original.

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:

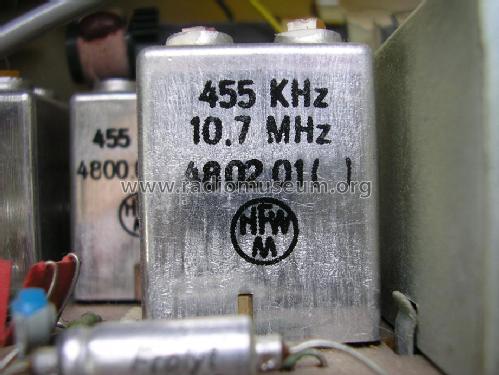

Main principle Superheterodyne (common); ZF/IF 455 / 10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Prominent 203 [CCIR] - Stern-Radio Sonneberg, VEB,
Material Wooden case

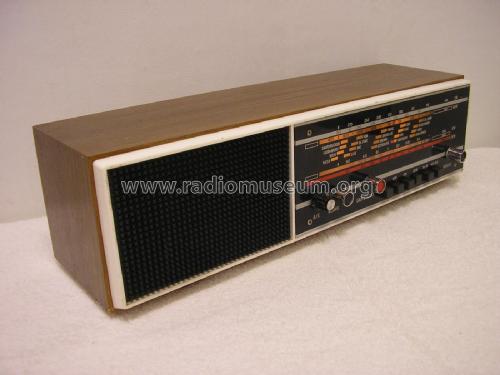

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 146 x 150 mm / 19.7 x 5.7 x 5.9 inch
Notes

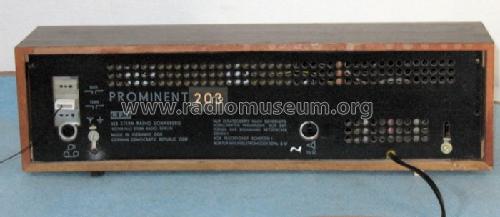

Der Empfänger Prominent 203 ist eine Exportversion mit einem Empfangsbereich UKW bis 108 MHz. Das Gerät hat Anschlüsse für TA, TB und für einen Zweitlautsprecher. Der Schaltplan ist für die Modellreihe Prominent 200, 201, 202 und 203 gültig. Verschiedene Gehäuseausführungen.

Siehe auch Prominent 203 mit UKW/FM Band nach OIRT

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
