Prominent de Luxe 210

Prominent de Luxe 210; Stern-Radio (ID = 305159) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305160) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305161) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305162) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305163) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305164) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305165) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305166) Radio

Prominent de Luxe 210; Stern-Radio (ID = 305168) Radio
Prominent de Luxe 210; Stern-Radio (ID = 730708) Radio Prominent de Luxe 210; Stern-Radio (ID = 730710) Radio
Prominent de Luxe 210; Stern-Radio (ID = 730709) Radio Prominent de Luxe 210; Stern-Radio (ID = 1014658) Radio
Prominent de Luxe 210; Stern-Radio (ID = 1014659) Radio Prominent de Luxe 210; Stern-Radio (ID = 1014660) Radio
Prominent de Luxe 210; Stern-Radio (ID = 1144721) Radio Prominent de Luxe 210; Stern-Radio (ID = 1150420) Radio
Prominent de Luxe 210; Stern-Radio (ID = 1377098) Radio
Use red slider bar for more.
Prominent de Luxe 210; Stern-Radio (ID = 730708) Radio
Stern-Radio: Prominent de Luxe 210 [Radio] ID = 730708 933x328
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prominent de Luxe 210, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1972–1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 SC207 SC206 AC187 AC188 B20C25 M25/10-0,36
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 1.5 W (undistorted)
from Radiomuseum.org Model: Prominent de Luxe 210 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 675 x 145 x 170 mm / 26.6 x 5.7 x 6.7 inch
Notes Der Schaltplan ist für die Modellreihe Prominent de Luxe 210, 211, 212 und 213 gültig. Verschiedene Gehäuseausführungen.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 465.00 DM
Collectors' prices
Mentioned in -- Original prospect or advert

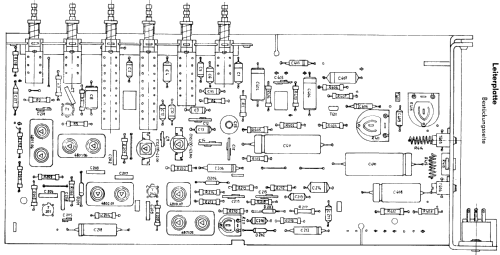

Literature/Schematics (1) -- Schematic

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 378 models, 299 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
