• Year
  • 1981 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 155462

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 4
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 4 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 4 W (unknown quality)
  • from Radiomuseum.org
  • Model: Saturn - Stern-Radio Sonneberg, VEB,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 530 x 122 x 155 mm / 20.9 x 4.8 x 6.1 inch
  • Notes
  • 2 IC, je ein Piezofilter AM und FM, UKW bis 104 MHz. Front Metall geschliffen oder schwarze Plastik, Schieberegler. Nach etwa 1985 weitere Fertigung im Antennenwerk Blankenburg (Saturn 421 u.a.)
  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Price in first year of sale
  • 410.00 Mark
  • Source of data

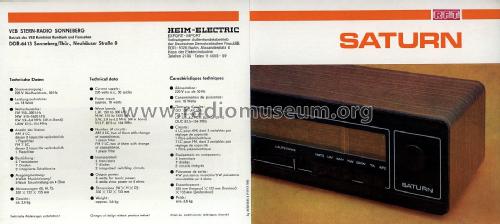

  • -- Original prospect or advert
  • Mentioned in
  • Geschichte der Rundfunkindustrie der DDR (B.2)
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
