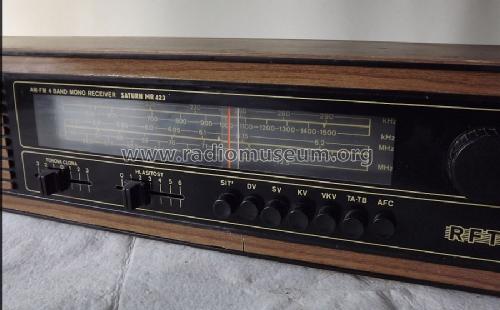

Saturn MR 423

Saturn MR 423; Stern-Radio (ID = 1537828) Radio
Saturn MR 423; Stern-Radio (ID = 1435888) Radio Saturn MR 423; Stern-Radio (ID = 1435893) Radio
Saturn MR 423; Stern-Radio (ID = 1435895) Radio Saturn MR 423; Stern-Radio (ID = 1435897) Radio
Saturn MR 423; Stern-Radio (ID = 1502283) Radio
Use red slider bar for more.
Saturn MR 423; Stern-Radio (ID = 1435888) Radio
Stern-Radio: Saturn MR 423 [Radio] ID = 1435888 900x488
Select picture or schematic to display from thumbnails on the right and click for download.
For model Saturn MR 423, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1987 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: SF235 SF235 SF225 SC239 A281 A205K
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 4 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Saturn MR 423 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 530 x 122 x 155 mm / 20.9 x 4.8 x 6.1 inch
Notes

Exportversion für CSSR. FM: OIRT 66-73 MHz.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Mentioned in -- Original-techn. papers.

Model page created by Jozef Kuklis. See "Data change" for further contributors.
