Sonneberg Sekretär 696/57WU Bakelitgehäuse

Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 746459) Radio

Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 1261281) Radio

Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 2342016) Radio

Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 2342017) Radio
Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 340657) Radio Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 30127) Radio
Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 340658) Radio Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 1075727) Radio
Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 1240241) Radio Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 746450) Radio
Use red slider bar for more.

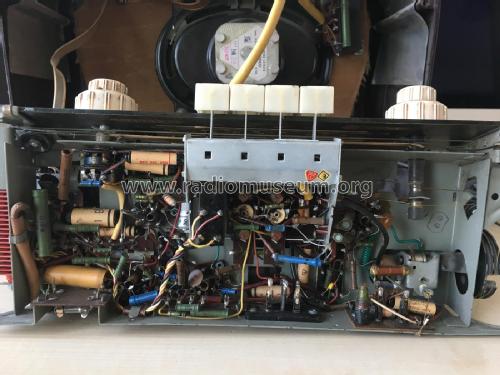

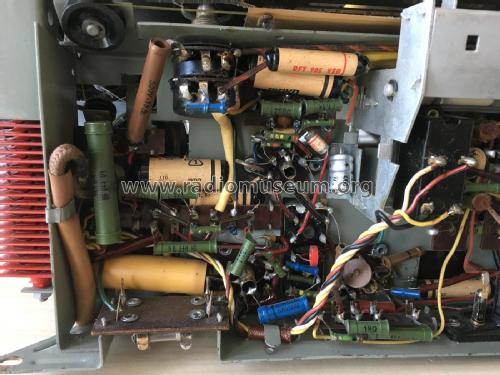

Sonneberg Sekretär 696/57WU; Stern-Radio (ID = 340657) Radio
Stern-Radio: Sonneberg Sekretär 696/57WU [Radio] ID = 340657 570x418
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonneberg Sekretär 696/57WU Bakelitgehäuse, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF80 EAA91 ECL81
Semiconductors (the count is only for transistors) Selen
Main principle Super-Heterodyne (Super in general); ZF/IF 473/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Sonneberg Sekretär 696/57WU [Bakelitgehäuse] - Stern-Radio Sonneberg, VEB,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 400 x 280 x 145 mm / 15.7 x 11 x 5.7 inch
Notes Parallelgerät zum 696/57WU mit Holzgehäuse

Netztrafo nur für Röhrenheizung, keine Netztrennung !!!

Net weight (2.2 lb = 1 kg) 6.6 kg / 14 lb 8.6 oz (14.537 lb)
Price in first year of sale 300.00 Mark
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Schematic (Service-DVD Funkverlag Hein)
