Sonneberg 500

Sonneberg 500 ; Stern-Radio (ID = 1966055) Radio

Sonneberg 500 ; Stern-Radio (ID = 1966056) Radio

Sonneberg 500 ; Stern-Radio (ID = 1966057) Radio

Sonneberg 500 ; Stern-Radio (ID = 210455) Radio

Sonneberg 500 ; Stern-Radio (ID = 1965812) Radio

Sonneberg 500 ; Stern-Radio (ID = 1965813) Radio

Sonneberg 500 ; Stern-Radio (ID = 1965814) Radio

Sonneberg 500 ; Stern-Radio (ID = 1965833) Radio

Sonneberg 500 ; Stern-Radio (ID = 1965815) Radio

Sonneberg 500 ; Stern-Radio (ID = 1965816) Radio
Sonneberg 500 ; Stern-Radio (ID = 107528) Radio Sonneberg 500 ; Stern-Radio (ID = 1324271) Radio
Sonneberg 500 ; Stern-Radio (ID = 1324272) Radio Sonneberg 500 ; Stern-Radio (ID = 1324273) Radio
Use red slider bar for more.
Sonneberg 500 ; Stern-Radio (ID = 107528) Radio
Stern-Radio: Sonneberg 500 [Radio] ID = 107528 933x304
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonneberg 500, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1978 perfect model Category: Broadcast Receiver - or past WW2 Tuner

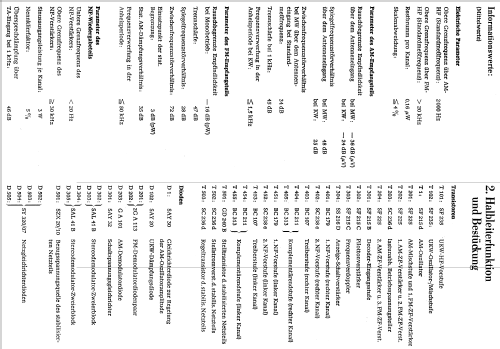

Semiconductors (the count is only for transistors) 24:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 6 W (undistorted)
from Radiomuseum.org Model: Sonneberg 500 - Stern-Radio Sonneberg, VEB,
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 90 x 225 mm / 18.9 x 3.5 x 8.9 inch
Notes

Kleine Heimstereoanlage mit dazugehörigen Boxen (3 VA, 8 Ω, 230x230x160 mm³) im Vollplastik-Gehäuse.

Ausgangsleistung 2x 3 W, Fest-AFC, Anschlüsse für Außenantenne, TA/TB, Kopfhörer.

Price in first year of sale 680.00 Mark
External source of data org. Werbeblatt
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in Sortimentskatalog Elektroakustik (DDR, 1979)

Model page created by Michael Seiffert. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Here you find 384 models, 308 with images and 280 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





Forum contributions about this model
Stern-Radio: Sonneberg 500
Threads: 1 | Posts: 1
Hits: 1405     Replies: 0
stern-sonn: Sonneberg 500 und Stereo Junior
Egon Strampe
23.Jan.09
  1

Beide Schaltpläne sind identisch. Eine Variante ist das Gerät Sonneberg 500. Es unterscheidet sich vom Stereo-Junior lediglich durch die chassislose Anordnung der gleichen Baugruppen.

Qelle: radio fernsehen elektronik 27/78

E.S.


Stern-Radio: Sonneberg 500
