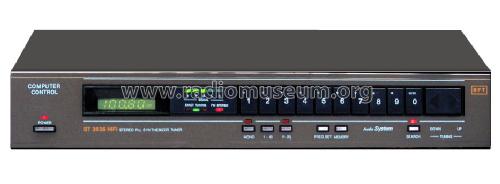

ST3936; Stern-Radio (ID = 218379) Radio
Stern-Radio: ST3936 [Radio] ID = 218379 933x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model ST3936, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1988/1989 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 28:
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: ST3936 - Stern-Radio Sonneberg, VEB,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 390 x 60 x 300 mm / 15.4 x 2.4 x 11.8 inch
Notes 12 ICs, PLL-System, 20 Speicherplätze; UKW-Tuner mit Doppelgate-Mosfet, Stereodecoder mit MPX-Filter, Stützung des Speichers bei Netzausfall per Batterie, Netzschalter auf der Sekundärseite des Netztrafos, kein Schaltnetzteil.
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Price in first year of sale 1'370.00 DM
Mentioned in -- Original-techn. papers.

Model page created by Armin Klischat † 2.9.13. See "Data change" for further contributors.
