• Year
  • 1963 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 130831

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110;127; 150;180; 200; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

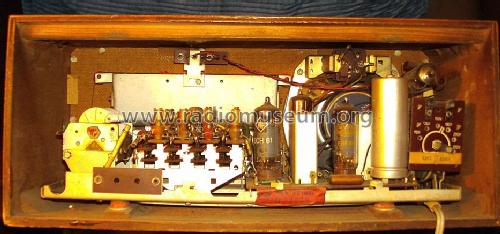

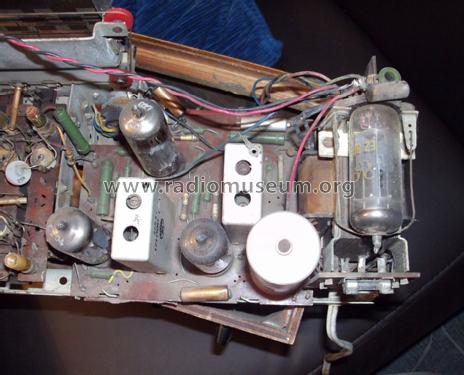

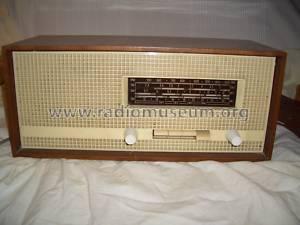

  • Model: Super 5080 C - Stern-Radio Sonneberg, VEB,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 350 x 160 x 150 mm / 13.8 x 6.3 x 5.9 inch
  • Notes
  • Achtung, Chassis vom Netz nicht getrennt (Autotrafo).
    3 KW-Bereiche.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Literature/Schematics (1)

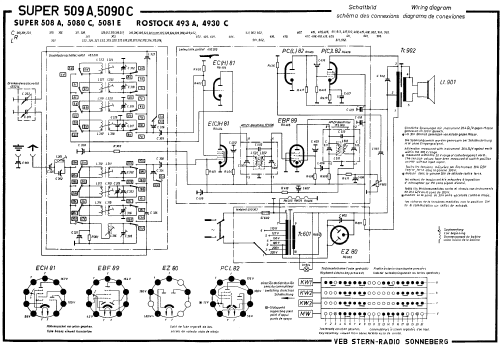

  • -- Schematic (Service- DVD vom Funkverlag B. Hein)
