SV3000 HiFi; Stern-Radio (ID = 1613698) Ampl/Mixer
Stern-Radio: SV3000 HiFi [Ampl/Mixer] ID = 1613698 933x473
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV3000 HiFi, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1982 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 12:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 26 W (undistorted)
from Radiomuseum.org Model: SV3000 HiFi - Stern-Radio Sonneberg, VEB,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 300 x 60 x 260 mm / 11.8 x 2.4 x 10.2 inch
Notes Der Stereoverstärker SV 3000 gehört zur Komponentenanlage S 3000 aus Sonneberg, vorgestellt auf der Leipziger Herbstmesse 1982. Ausgangsleistung 2 x 13 Watt Sinus, Übertragungsbereich von 31,5 bis 18000 Hz. Die Endstufe ist mit 2 x MDA2020 (TDA2020) aufgebaut, elektronische Potentiometer mit den Schaltkreisen A273D und A274D.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 740.00 DM
Source of data -- Collector info (Sammler)

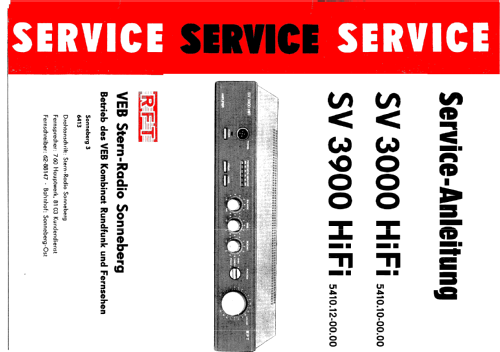

Literature/Schematics (1) Service-DVD Funkverlag B. Hein
Literature/Schematics (2) radio fernsehen elektronik 1984, H.2

Model page created by Wolfgang Lill. See "Data change" for further contributors.
