Transmira 6100

Transmira 6100; Stern-Radio (ID = 55885) Radio

Transmira 6100; Stern-Radio (ID = 55886) Radio

Transmira 6100; Stern-Radio (ID = 55887) Radio

Transmira 6100; Stern-Radio (ID = 55888) Radio

Transmira 6100; Stern-Radio (ID = 55889) Radio

Transmira 6100; Stern-Radio (ID = 55890) Radio

Transmira 6100; Stern-Radio (ID = 55892) Radio

Transmira 6100; Stern-Radio (ID = 2567044) Radio
Transmira 6100; Stern-Radio (ID = 309843) Radio Transmira 6100; Stern-Radio (ID = 309844) Radio
Transmira 6100; Stern-Radio (ID = 309842) Radio Transmira 6100; Stern-Radio (ID = 55784) Radio
Use red slider bar for more.

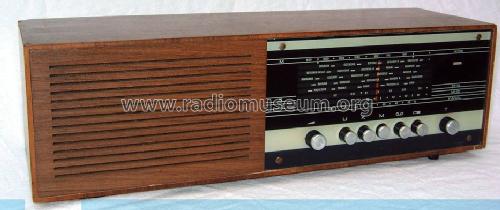

Transmira 6100; Stern-Radio (ID = 309843) Radio
Stern-Radio: Transmira 6100 [Radio] ID = 309843 933x393
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmira 6100, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG:
Serien Nr.:

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 160-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Transmira 6100 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 130 x 130 mm / 17.7 x 5.1 x 5.1 inch
Notes Variante 6100/6110/6120 UKW Bereich: 87,5-100MHz
Variante 6130/6140/6150 UKW Bereich: 88-108MHz
Variante 6160/6170/6180 UKW Bereich: 66-73MHz
Verschiedene Frontplatten: Holz, Plastik oder Metall
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
External source of data Serviceheft Sternradio Sonneberg
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Michael Seiffert. See "Data change" for further contributors.
