• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71477

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• GF132 GF181 GF130 GF130 GF130 GC117 GC116 GC116 GD160 GD160

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 160-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

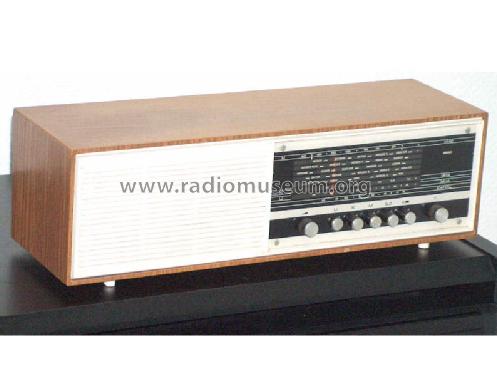

• Model: Transmira 6110 - Stern-Radio Sonneberg, VEB,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 450 x 130 x 130 mm / 17.7 x 5.1 x 5.1 inch

• Notes
• UKW-Bereich: 87,5 - 100 MHz

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• External source of data
• Service-Heft RFST

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.
