Transmira 6120

Transmira 6120; Stern-Radio (ID = 55808) Radio
Transmira 6120; Stern-Radio (ID = 447935) Radio Transmira 6120; Stern-Radio (ID = 447936) Radio
Transmira 6120; Stern-Radio (ID = 447937) Radio Transmira 6120; Stern-Radio (ID = 55786) Radio
Transmira 6120; Stern-Radio (ID = 461365) Radio Transmira 6120; Stern-Radio (ID = 461366) Radio
Transmira 6120; Stern-Radio (ID = 461367) Radio Transmira 6120; Stern-Radio (ID = 565490) Radio

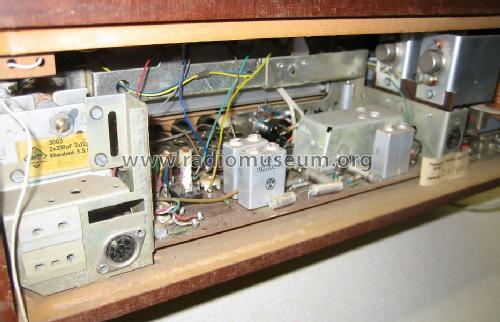

Transmira 6120; Stern-Radio (ID = 565491) Radio Transmira 6120; Stern-Radio (ID = 565492) Radio
Use red slider bar for more.
Transmira 6120; Stern-Radio (ID = 447935) Radio
Stern-Radio: Transmira 6120 [Radio] ID = 447935 933x467
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transmira 6120, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 160-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Transmira 6120 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 130 x 130 inch / 11430 x 3302 x 3302 mm
Notes UKW Bereich: 87,5-100MHz
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
External source of data Service-Heft RFST
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Michael Seiffert. See "Data change" for further contributors.
