Stern-Radio: Transstereo 2401.11 [Radio] ID = 615897 930x390
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1972 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 27: |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455/10700 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) 11 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 20 W (unknown quality) |
| from Radiomuseum.org | Model: Transstereo 2401.11 - Stern-Radio Sonneberg, VEB, |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 517 x 128 x 255 mm / 20.4 x 5 x 10 inch |
| Notes | Entspricht dem Modell 2401.03, aber verstärkte Endstufen mit 2x 10W und 20-Liter-Kompaktboxen mit Hoch- und Tiefton- Lautsprecher (425x245x315 mm). |
| Net weight (2.2 lb = 1 kg) | 25 kg / 55 lb 1.1 oz (55.066 lb) |

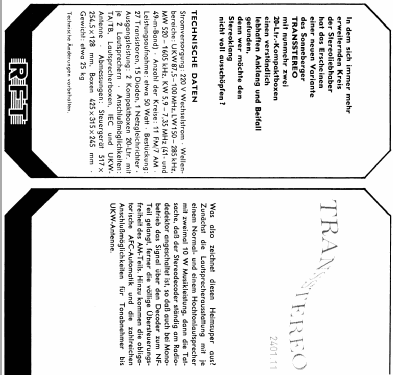

| Source of data | -- Original prospect or advert |
Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
