Tucana 5520; Stern-Radio (ID = 72180) Radio

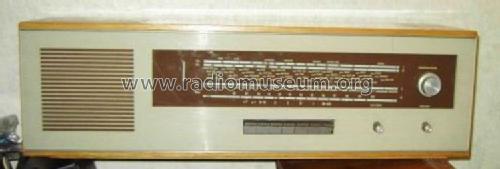

Stern-Radio: Tucana 5520 [Radio] ID = 72180 933x378
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tucana 5520, Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Sonneberg, VEB, RFT; SONRA; -vorm.: EAK (Ostd.) - ex. AEG
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EAF801 ECL86 EM84
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Tucana 5520 - Stern-Radio Sonneberg, VEB,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 704 x 205 x 214 mm / 27.7 x 8.1 x 8.4 inch
Notes Baugruppen wie Variant 5550. Der Tucana 5520 ist gegenüber dem Variant 5550 abgerüstet. Nur ein Schalter Sprache/ Musik, einfache Tonblende statt getrennter Höhen- Tiefenregelung.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 440.00 DM
Collectors' prices
Source of data Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (Zeitschrift Funkamateur Jahrgang 1968, Heft 5 Seite 229.)
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein.

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
