Luxomat 210

Luxomat 210; Stern-Radio Staßfurt (ID = 583480) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 583481) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 583482) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 1249635) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 1249636) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 1249637) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 1249642) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 1249644) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 1249648) Television

Luxomat 210; Stern-Radio Staßfurt (ID = 1249649) Television
Luxomat 210; Stern-Radio Staßfurt (ID = 2480399) Television Luxomat 210; Stern-Radio Staßfurt (ID = 2480400) Television
Luxomat 210; Stern-Radio Staßfurt (ID = 1056308) Television Luxomat 210; Stern-Radio Staßfurt (ID = 680330) Television
Luxomat 210; Stern-Radio Staßfurt (ID = 1313106) Television Luxomat 210; Stern-Radio Staßfurt (ID = 1313107) Television
Use red slider bar for more.
Luxomat 210; Stern-Radio Staßfurt (ID = 2480399) Television
Stern-Radio Staßfurt: Luxomat 210 [Television] ID = 2480399 1400x980
Select picture or schematic to display from thumbnails on the right and click for download.
For model Luxomat 210, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt
Year: 1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PCF801 PCL85 PCL86 PL504 PY88 DY86 B61G1
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Luxomat 210 - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 730 x 500 x 380 mm / 28.7 x 19.7 x 15 inch
Notes

Der Empfänger Luxomat 210 ist das erste Gerät einer Baureihe mit einem teiltransistorisierten Chassis. Das Gerät entspricht in seiner elektrischen Konzeption dem Luxomat 110, hat aber zusätzlich einen Drehfuß. Halbwellenheizung, steckbarer Kombituner mit einem Senderspeicher mit 5 Tasten für 1x Band I, 2x Band III und 2x Band IV. Keine Bandumschaltung, der Tastensatz ist fest verdrahtet. Empfangen werden die Kanäle 2 - 12 und 21 - 39 nach CCIR.

Gehäusevarianten: mattiert (2090 Mark), poliert (2110 Mark) und weiß (2110 Mark).

Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 2'110.00 Mark
Mentioned in Service-DVD Funkverlag B. Hein (Sortimentskatalog Elektroakustik (DDR, 1976))

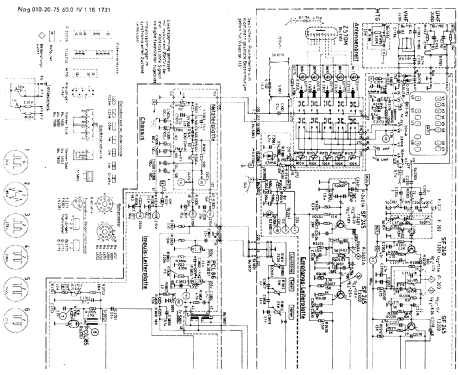

Literature/Schematics (1) -- Schematic

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
