Stella 1505U

Stella 1505U; Stern-Radio Staßfurt (ID = 308794) Television

Stella 1505U; Stern-Radio Staßfurt (ID = 308795) Television

Stella 1505U; Stern-Radio Staßfurt (ID = 1538394) Television

Stella 1505U; Stern-Radio Staßfurt (ID = 1538395) Television

Stella 1505U; Stern-Radio Staßfurt (ID = 1538396) Television

Stella 1505U; Stern-Radio Staßfurt (ID = 1538397) Television

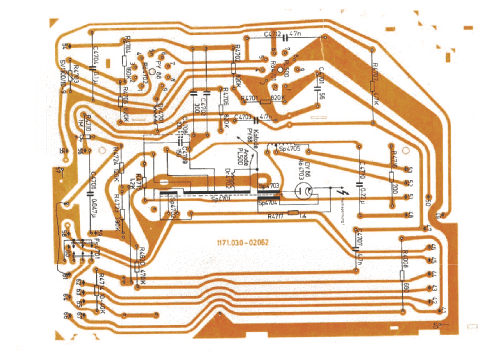

Stella 1505U; Stern-Radio Staßfurt (ID = 1538398) Television

Stella 1505U; Stern-Radio Staßfurt (ID = 1538400) Television

Stella 1505U; Stern-Radio Staßfurt (ID = 1538401) Television

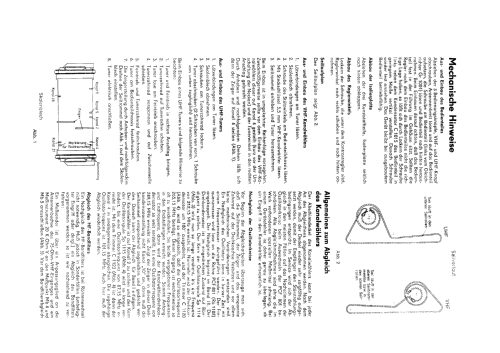

Stella 1505U; Stern-Radio Staßfurt (ID = 1538402) Television
Stella 1505U; Stern-Radio Staßfurt (ID = 308796) Television
Use red slider bar for more.
Stella 1505U; Stern-Radio Staßfurt (ID = 308796) Television

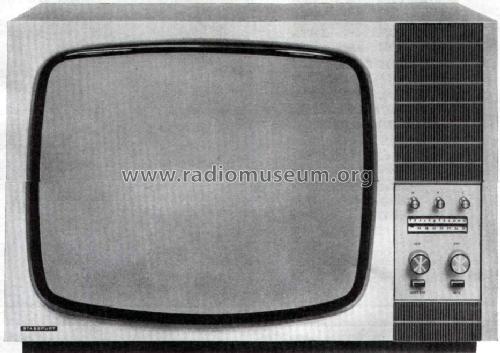

Stern-Radio Staßfurt: Stella 1505U [Television] ID = 308796 933x659
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stella 1505U, Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

Country:  Germany
Manufacturer / Brand:  Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...
alternative name

Fernsehgerätewerk Staßfurt

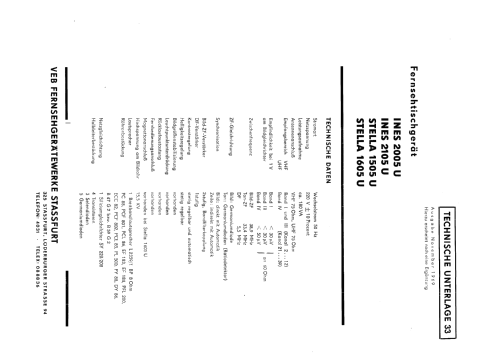

Year: 1969 Category: Television Receiver (TV) or Monitor
Valves / Tubes 13: PC88 PCF801 EF183 EF184 PFL200 PCL86 PCL85 ECC82 PCF802 PL500 PY88 DY86 B59G2 or 59ЛК3Б
Semiconductors (the count is only for transistors) 4: GF145 GF145 GF128 GF139
Main principle Superheterodyne (common); ZF/IF 38900 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Stella 1505U - Stern-Radio Staßfurt, VEB, RFT
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 750 x 513 x 385 mm / 29.5 x 20.2 x 15.2 inch
Notes

Der Empfänger Stella 1505U hat einen Gitterbasis- Tuner zum Empfang der Kanäle 2 - 12 und einen UHF-Tuner für Kanal 21 - 39, einen steckbaren Zeilentrafo, sowie eine Bild- und Zeilenfangautomatik. Der UHF-Tuner und der DF-Verstärker sind transistorisiert aufgebaut. Teilweise ist das Gerät mit der russischen Bildröhre 59lk3b bestückt.

Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Source of data -- Original prospect or advert
Mentioned in Service-DVD Funkverlag B. Hein

Model page created by Mario Spitzer. See "Data change" for further contributors.
