• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135105

• • Brand: Ferrodyne

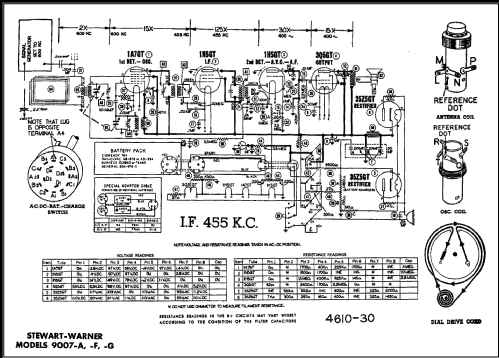

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A7GT 1N5GT 1H5GT 3Q5GT 35Z5GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC 117 / 90 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org
• Model: 9007-A - Stewart Warner Corp.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes
• Self Contained Loop Antenna.

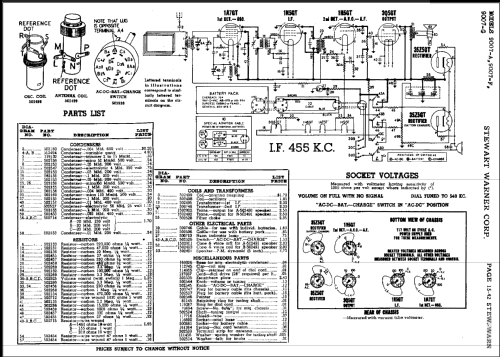

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Beitman Radio Diagrams, Vol. 06, 1946

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Dat 12-46, set 10, folder 4610-30)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
