• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 147729

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1,5 & 90 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • from Radiomuseum.org
  • Model: R-444 - Stewart Warner; Ontario
  • Notes
  • Built-in loop antenna.

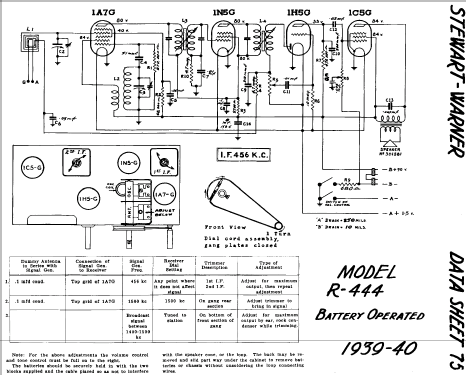

  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Stewart-Warner Sheet 75
