Lesion Producing Device 58040

Lesion Producing Device 58040; Stoelting Co.; (ID = 2376560) Equipment Lesion Producing Device 58040; Stoelting Co.; (ID = 2376561) Equipment
Lesion Producing Device 58040; Stoelting Co.; (ID = 2380058) Equipment Lesion Producing Device 58040; Stoelting Co.; (ID = 2380218) Equipment
Use red slider bar for more.

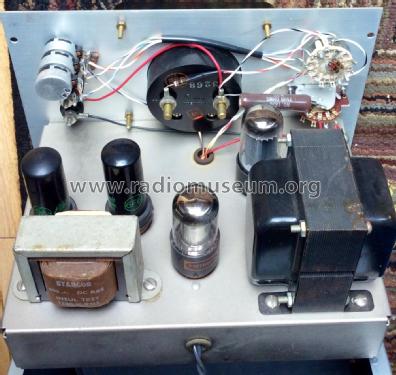

Lesion Producing Device 58040; Stoelting Co.; (ID = 2376560) Equipment
Stoelting Co.;: Lesion Producing Device 58040 [Equipment] ID = 2376560 1400x1203
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lesion Producing Device 58040, Stoelting Co.; Chicago, IL

Country:  United States of America (USA)
Manufacturer / Brand:  Stoelting Co.; Chicago, IL
Year: 1955 ?? Category: Service- or Lab Equipment
Valves / Tubes 3: 6F6 6F6 5Y3GT 0D3A
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz; 115 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Lesion Producing Device 58040 - Stoelting Co.; Chicago, IL
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 11 x 9 x 8 inch / 279 x 229 x 203 mm
Notes

This device was used for experimental research.  It used an implanted electrode to induce lesions on the brain of small animals.

Net weight (2.2 lb = 1 kg) 13 lb 7 oz (13.438 lb) / 6.101 kg
Price in first year of sale 115.00 US$

Model page created by Larry Anderson. See "Data change" for further contributors.



All listed radios etc. from Stoelting Co.; Chicago, IL
Here you find 4 models, 4 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
