1101-HB Dynatomic Series 10

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 1269010) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 1269011) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 1269012) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 1269013) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 956898) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 956899) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 485880) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 485881) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 485882) Radio

1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 485883) Radio
1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 236606) Radio 1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 236607) Radio
1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 1082162) Radio
Use red slider bar for more.
1101-HB Dynatomic Series 10; Stromberg-Carlson Co (ID = 236606) Radio
Stromberg-Carlson Co: 1101-HB Dynatomic Series 10 [Radio] ID = 236606 400x266
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1101-HB Dynatomic Series 10, Stromberg-Carlson Co. ; Rochester (NY):
Q= Ebay, verkaufer: patricio102 objnr: 220007946351

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.125 inch = 13 cm
Power out 0.65 W (unknown quality)
from Radiomuseum.org Model: 1101-HB Dynatomic Series 10 - Stromberg-Carlson Co. ;
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes The Stromberg-Carlson model 1101 was made at least in 6 different cabinet versions: HB: Brown bakelite, chassis 112002, cabinet 108031; HI: Ivory bakelite, chassis 112002, cabinet 108032; HM: Mahagony, chassis 112003, cabinet 108011 ; HW: Walnut, chassis 112001, cabinet 108001; HY: Bleached, chassis 112001, cabinet 108002 and as a radiogram 1101HPW with Walnut cabinet. Except of the radiogram, they were produced as series 10 with a Electro Magnetic Dynamic loudspeaker, followed by series 11 with a Permanent Magnet Dynamic loudspeaker as main difference. Later series are similar as series 11 and we can put pictures up to series 11. The radiogram was most probably only made in the later series. It is possible that Canadian made models exist and that they use other series. Please be careful where to load up your pictures and if possible load up also one of the chassis.

For details, please read this forum text about this model line.
Price in first year of sale 29.95 $
External source of data Ernst Erb

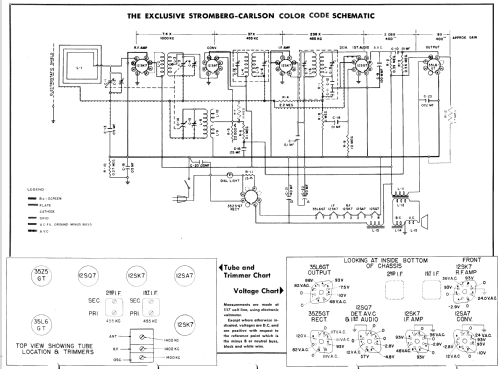

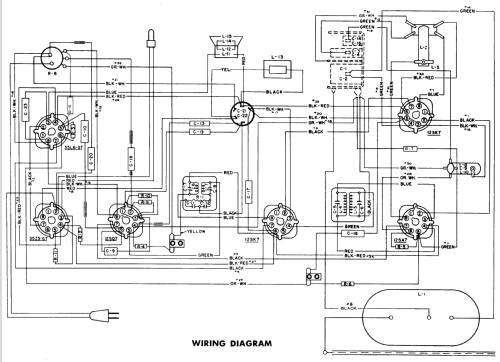

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Mentioned in Radio Retailing (Radio & Television R.) (May 1946 page 34.)
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Dat 7-46, set 2, folder 462-9)
Literature/Schematics (2) Beitman Radio Diagrams, Vol. 07, 1947
