For model 1101HPW Series 11, Stromberg-Carlson Co. ; Rochester (NY):
SAMS Photofact

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1946–1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.125 inch = 13 cm
Power out
from Radiomuseum.org Model: 1101HPW Series 11 - Stromberg-Carlson Co. ;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).

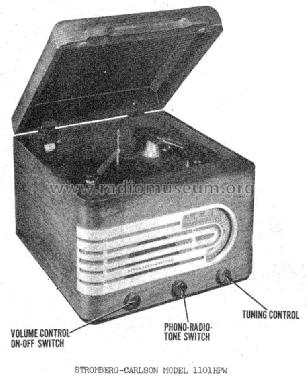

Notes The Stromberg-Carlson model 1101 was made at least in 6 different cabinet versions: HB: Brown bakelite, chassis 112002, cabinet 108031; HI: Ivory bakelite, chassis 112002, cabinet 108032; HM: Mahagony, chassis 112003, cabinet 108011 ; HW: Walnut, chassis 112001, cabinet 108001; HY: Bleached, chassis 112001, cabinet 108002 and as a radiogram 1101HPW with Walnut cabinet. Except of the radiogram, they were produced as series 10 with a Electro Magnetic Dynamic loudspeaker, followed by series 11 with a Permanent Magnet Dynamic loudspeaker as main difference. Later series are similar as series 11 and we can put pictures up to series 11. The radiogram was most probably only made in the later series. It is possible that Canadian made models exist and that they use other series. Please be careful where to load up your pictures and if possible load up also one of the chassis.

For details, please read this forum text about this model line.

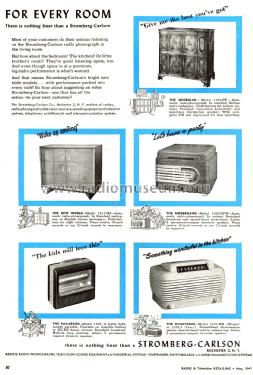

Mentioned in Radio Retailing (Radio & Television R.) (May 1947 page 30.)

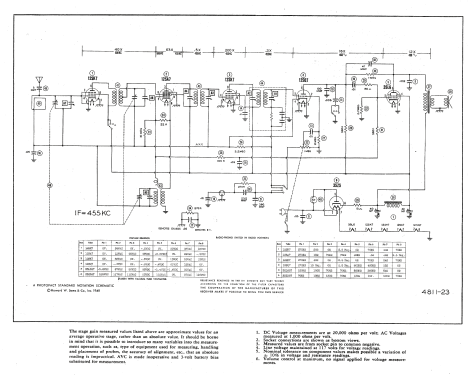

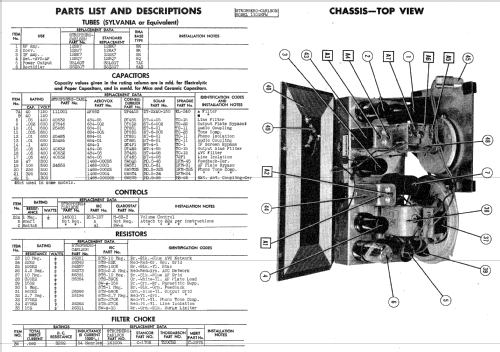

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Date 5/48, set 41, folder 23 (#4811-23))

Model page created by Ernst Erb. See "Data change" for further contributors.
