1101HW Series 13 Ch= 112001

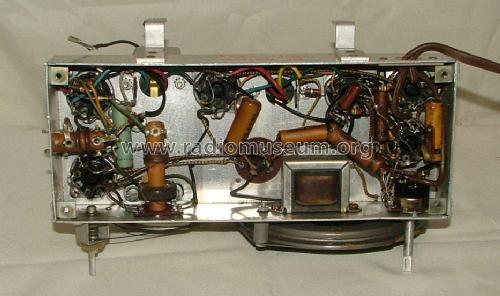

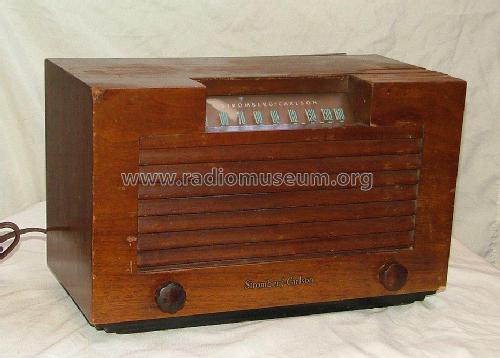

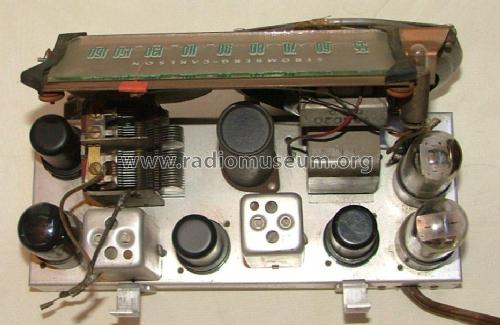

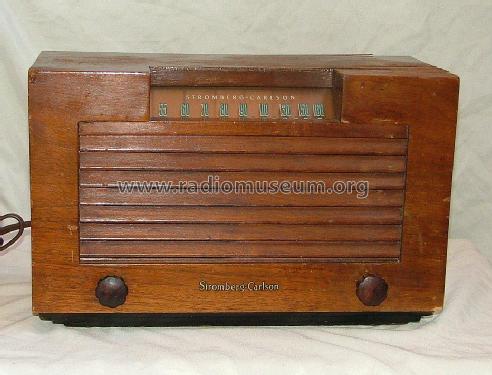

1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852615) Radio 1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852616) Radio
1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852617) Radio 1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852618) Radio
1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852619) Radio 1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852620) Radio
1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852621) Radio 1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852622) Radio
Use red slider bar for more.
1101HW Series 13 Ch= 112001; Stromberg-Carlson Co (ID = 1852615) Radio
Stromberg-Carlson Co: 1101HW Series 13 Ch= 112001 [Radio] ID = 1852615 933x669
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1101HW Series 13 Ch= 112001, Stromberg-Carlson Co. ; Rochester (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1946/1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5.125 inch = 13 cm
Power out 0.65 W (unknown quality)
from Radiomuseum.org Model: 1101HW Series 13 Ch= 112001 - Stromberg-Carlson Co. ;
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

The Stromberg-Carlson 1101HW is an AC/DC operated 6 tube BC band receiver.  The BC band frequency tuning range is 540-1600kHz.  Has built-in loop antenna.  Uses type 47 dial lamp.

Cabinet 108011, Chassis 112001, Speaker transformer 155020

The Stromberg-Carlson model 1101 was made at least in 6 different cabinet versions: HB: Brown bakelite, chassis 112002, cabinet 108031; HI: Ivory bakelite, chassis 112002, cabinet 108032; HM: Mahagony, chassis 112003, cabinet 108011 ; HW: Walnut, chassis 112001, cabinet 108001; HY: Bleached, chassis 112001, cabinet 108002 and as a radiogram 1101HPW with Walnut cabinet. Except of the radiogram, they were produced as series 10 with a Electro Magnetic Dynamic loudspeaker, followed by series 11 with a Permanent Magnet Dynamic loudspeaker as main difference. Later series are similar as series 11 and we can put pictures up to series 11. The radiogram was most probably only made in the later series. It is possible that Canadian made models exist and that they use other series. Please be careful where to load up your pictures and if possible load up also one of the chassis.

For details, please read this forum text about this model line.

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 2, Folder 9, Date 7-46)

Model page created by Marcella Brodsky. See "Data change" for further contributors.
