For model 130-H Ch= P-26246, Stromberg-Carlson Co. ; Rochester (NY):

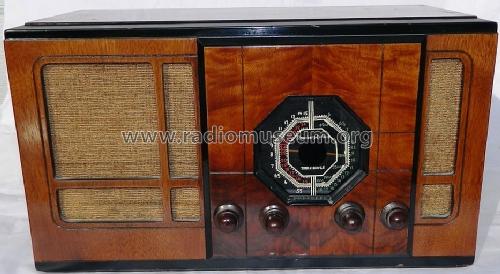

Stromberg Carlson 130-H Front View

Country:  United States of America (USA)
Manufacturer / Brand:  Stromberg-Carlson Co. ; Rochester (NY)
Brand

Te-Lek-Tor-Et
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7 6A8 6K7 6H6 6F5 6F6 80
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 130-H Ch= P-26246 - Stromberg-Carlson Co. ;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20 x 11.5 x 9.25 inch / 508 x 292 x 235 mm
Notes The Stromberg-Carlson model 130-H is a 7 tube, 50-60Hz AC operated BC/Police/SW band receiver.

Band Frequencies:
Broadcast Band ("Band A"): 540-1500kHz
Police Band ("Band B"): 1450-3500MHz
SW Band ("Band C"): 5.6-18.0MHz

Socket in center on rear of chassis used for tuning eye (Used for other model 130 receivers but not used on this model). Has sensitivity control on rear left of chassis(CCW to decrease sensitivity).
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition (Rider's 7-19 to 7-22)
Literature/Schematics (1) - - Manufacturers Literature (Stromberg-Carlson Datasheet P-26436 Form 2103 Issue 2)
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 156.)
