1409M2-Y
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Te-Lek-Tor-Et | ||||
|---|---|---|---|---|---|
| Year: 1949 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 14: 12AT7 6BA6 6BA6 6BA6 6E5 6BE6 6BA6 6BA6 6AL5 6AV6 12AU7 6V6GT 6V6GT 5Y3GT |
| Main principle | Superheterodyne (common); ZF/IF 455/10700 kHz |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | Record Player (perh.Changer) |
| Power type and voltage | Alternating Current supply (AC) / 117 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 11 W (unknown quality) |
| from Radiomuseum.org | Model: 1409M2-Y - Stromberg-Carlson Co. ; |
| Material | Wooden case |
| Shape | Console, Lowboy (legs < 50 %). |
| External source of data | Ernst Erb |

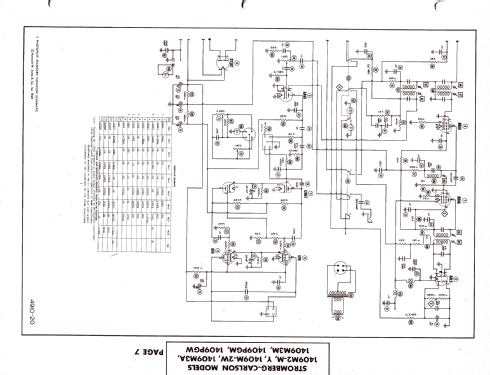

| Circuit diagram reference | Rider's Perpetual, Volume 19 = 1949 and before |
| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Set 62, Folder 20) |
All listed radios etc. from Stromberg-Carlson Co. ; Rochester (NY)
Here you find 780 models, 473 with images and 653 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
