- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174291
-
- Brand: Te-Lek-Tor-Et

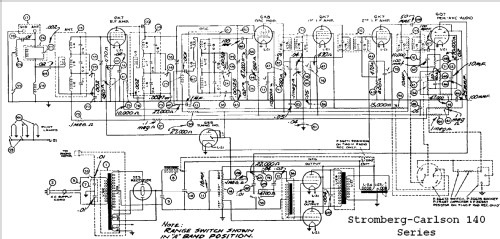

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 140-M - Stromberg-Carlson Co. ;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- BC (540-1500 kHz), TROP (1450-3500 kHz) and SW (5.6-18.0 MHz) bands. Tuning eye, push-pull audio amplifier. For 50 to 60 Hz AC.
- Price in first year of sale
- 157.50 $
- Circuit diagram reference
- Rider's Perpetual, Volume 8 = 1937 and before
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition)
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (January, February 1937.)
- Literature/Schematics (3)
- Pre-War Consoles
- Author
- Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
