• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62058
    • Brand: Te-Lek-Tor-Et

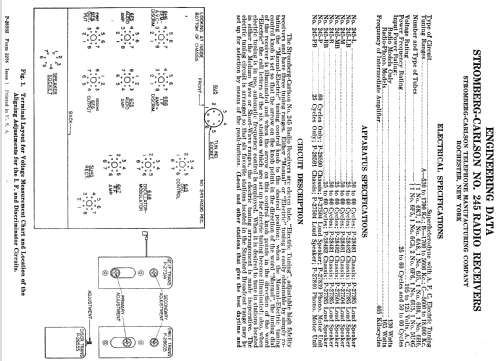

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 245-R - Stromberg-Carlson Co. ;
  • Shape
  • Console with any shape - in general
  • Notes
  • BC (530-1700 kHz), TROP (1700-5600 kHz) and SW (5.6-18.0 MHz) bands. Six station buttons for BC. Tuning eye, AFC circuit, push-pull audio amplifier. For 50 to 60 Hz AC.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
  • Mentioned in
  • Rider's 9-26 to 9-30
