320-T Ch= 320
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1938–1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62077
-
- Brand: Te-Lek-Tor-Et

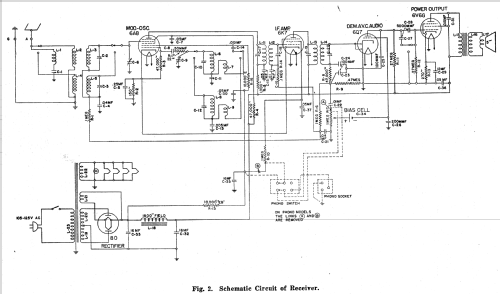

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 320-T Ch= 320 - Stromberg-Carlson Co. ;
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 20.625 x 29.25 x 13 inch / 524 x 743 x 330 mm
- Notes
-

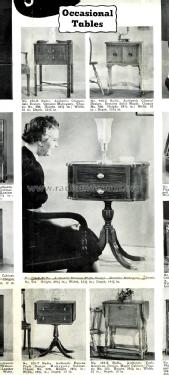

BC (530-1700 kHz) and SW (5.9-18.0 MHz) bands. For 50 to 60 Hz AC. Mahogany, side table, drop leaf Duncan Phyfe design.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition) (Rider's 10-9, 10-10, 10-11)
