• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1938–1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62084

• • Brand: Te-Lek-Tor-Et

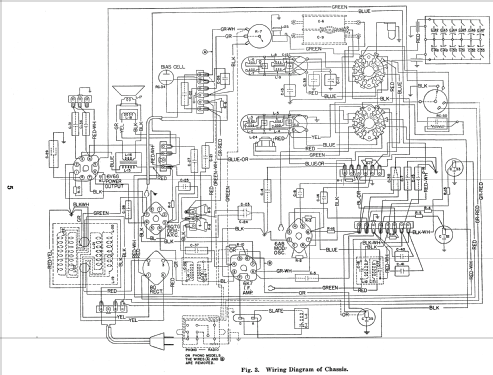

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7G 6V6G 80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

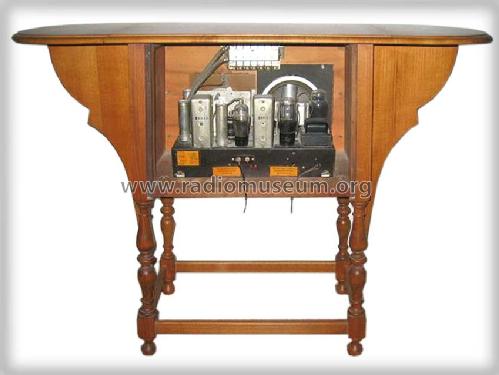

• Model: 325-S Ch= 325 - Stromberg-Carlson Co. ;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 22 x 29.125 x 13 inch / 559 x 740 x 330 mm

• Notes

• BC (530-1700 kHz) with six station buttons and SW (5.8-18.0 MHz) bands. For 50 to 60 Hz AC. Authentic Early American Design.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition (Rider's 10-13 to 10-16)

• Other Models

• Here you find 868 models, 490 with images and 739 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
