335-L Ch= P-28818
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62088
-
- Brand: Te-Lek-Tor-Et

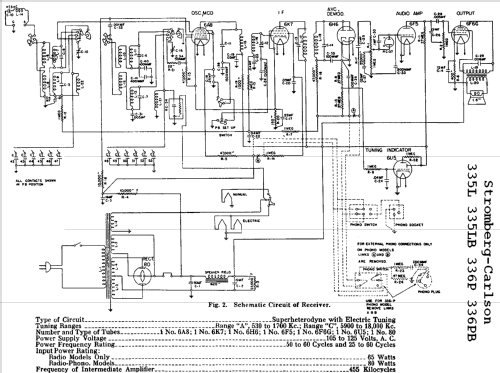

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 50-60 Hz, 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 335-L Ch= P-28818 - Stromberg-Carlson Co. ;
- Shape
- Console with Push Buttons.
- Notes
- The Stromberg-Carlson model 335-L is a 50-60Hz AC operated 7 tube BC and SW band receiver. The BC Band frequency range is 530-1700kHz with six station preset buttons. The SW Band frequency range is 5.9-18.0MHz. Has Tuning eye.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition (Rider's 10-16 to 10-18, 10-30)
- Literature/Schematics (1)
- Pre-War Consoles
- Literature/Schematics (2)
- - - Manufacturers Literature (Stromberg Carlson Datasheet P-29099 Issue 1)
