• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62092
    • Brand: Te-Lek-Tor-Et

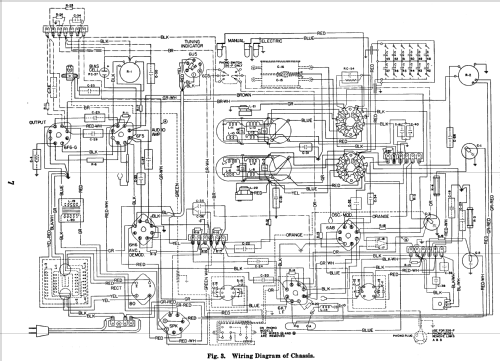

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • from Radiomuseum.org
  • Model: 336-PB - Stromberg-Carlson Co. ;
  • Notes
  • BC (530-1700 kHz) with six station buttons and SW (5.9-18.0 MHz) bands. Tuning eye. For 25 to 60 Hz AC.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
  • Mentioned in
  • Rider's 10-16 to 10-18, 10-30
